Standard Duty
- 600 kg upright
- 11 positions
- 450 · 600 · 750 mm brackets
- 150 / 100 / 75 kg
from £72.25 ex VAT
Build itRacking that simply attaches.
No drilling. No lost floor. Easily removed.
Steel uprights attach to the lashing rings your container already has, with no drilling or damage. Brackets slot in at any of eleven heights, timber decks drop across them, and every wall works for you.
- 600 kg
- per upright, Standard Duty
- 11
- height positions
- 100%
- of the floor kept
Some of our clients
Two systems

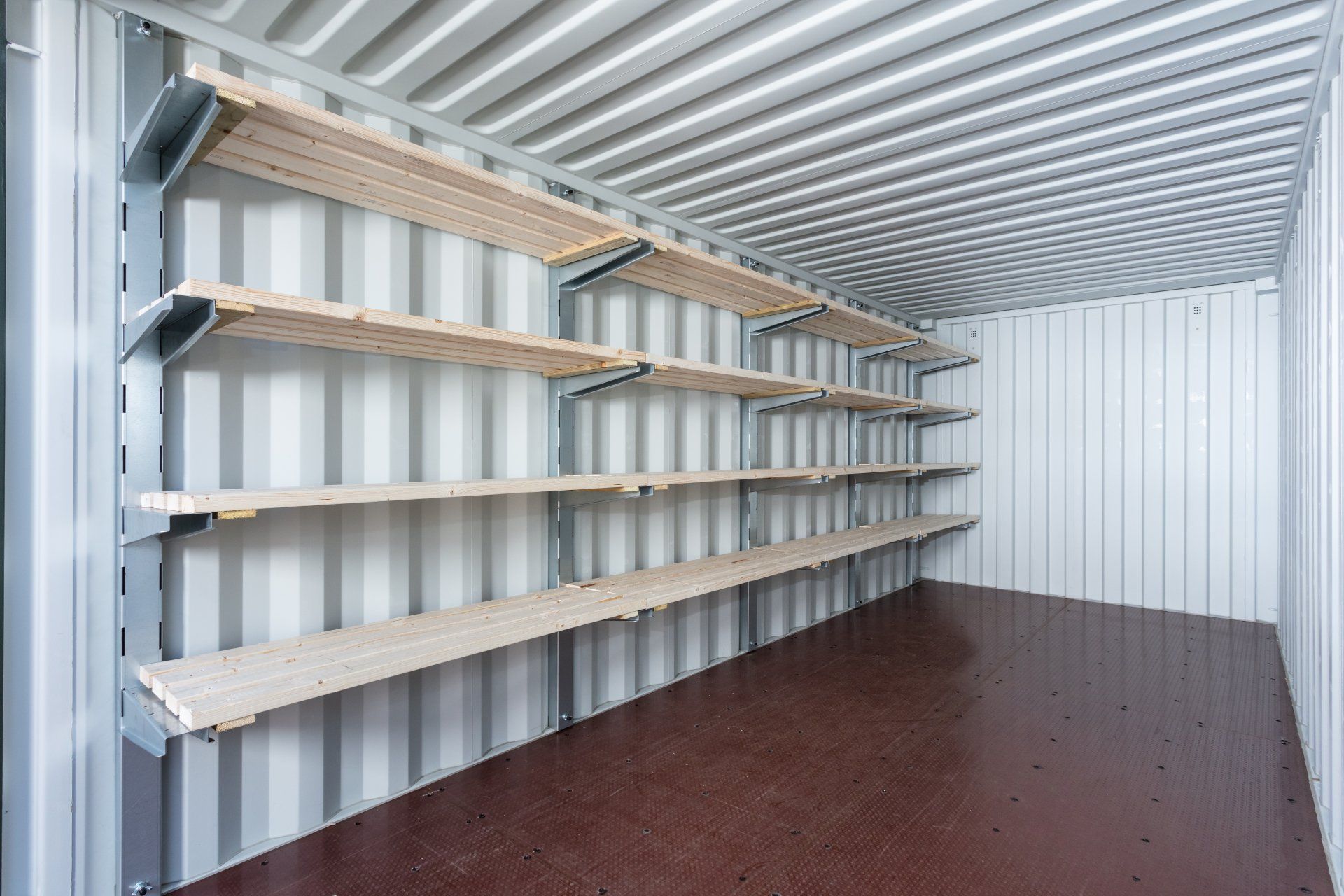

Standard Duty or
Heavy Duty

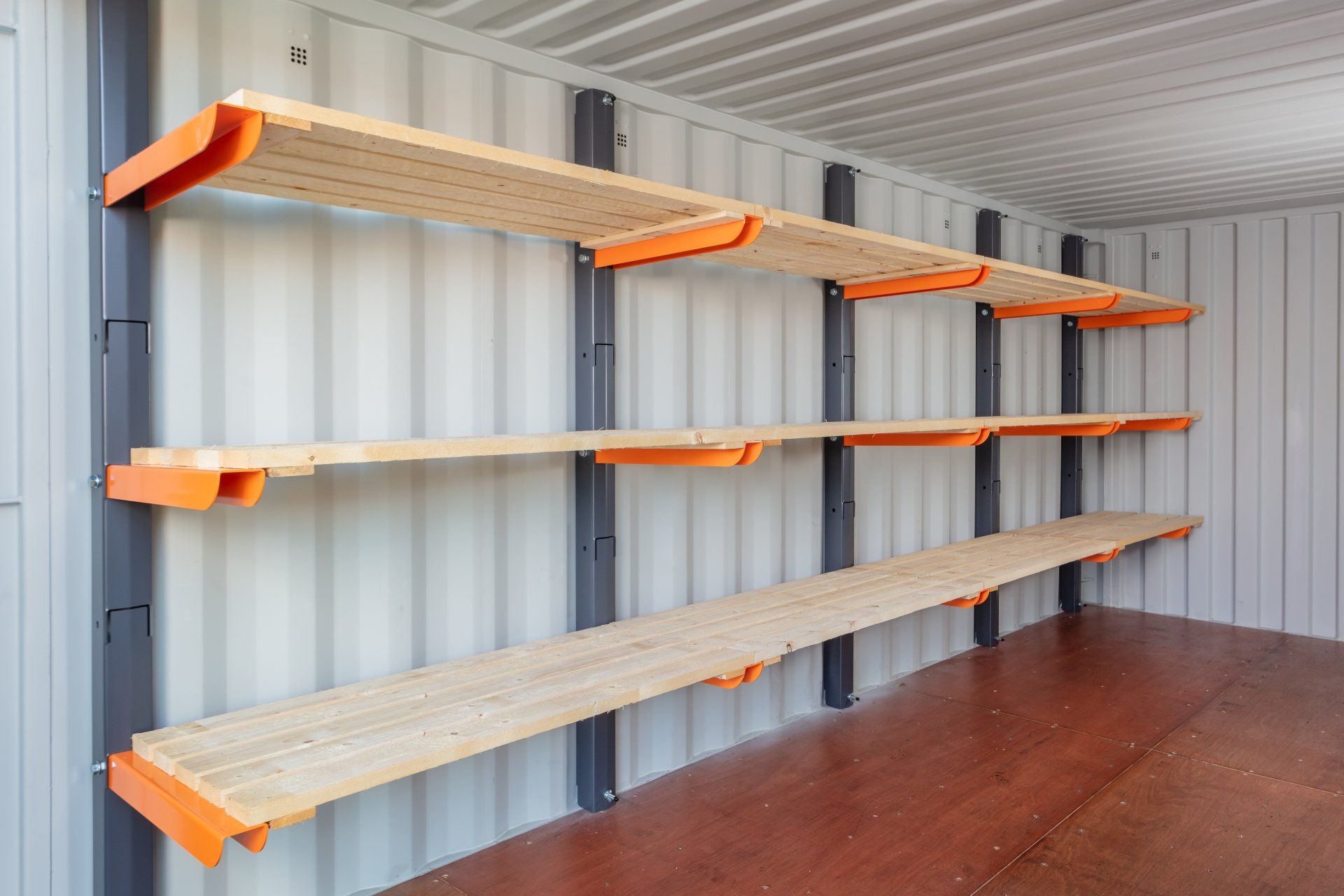

Standard Duty does most jobs. Heavy Duty is for dense stock, workshops and heavier material.
Popular builds
The layouts
people order most

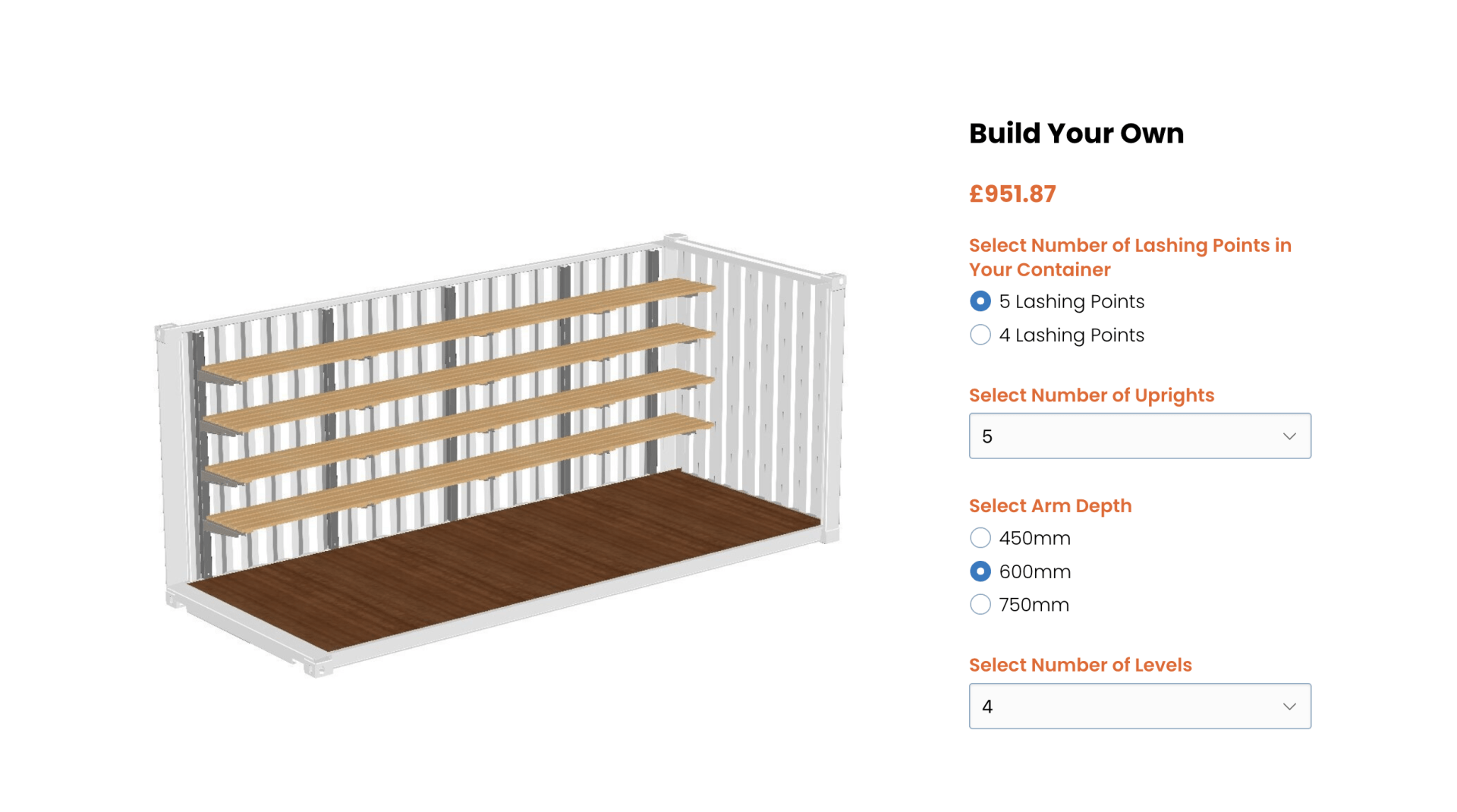

Open one in the configurator and change whatever you like.
How it fits
What each part does
Tap a dot on the photo for the part and what it carries.
Upright · Standard Duty
Attaches to the lashing rings with the supplied fixings. No drilling or damage to the container.
Rated 600 kg. 11 height positions.

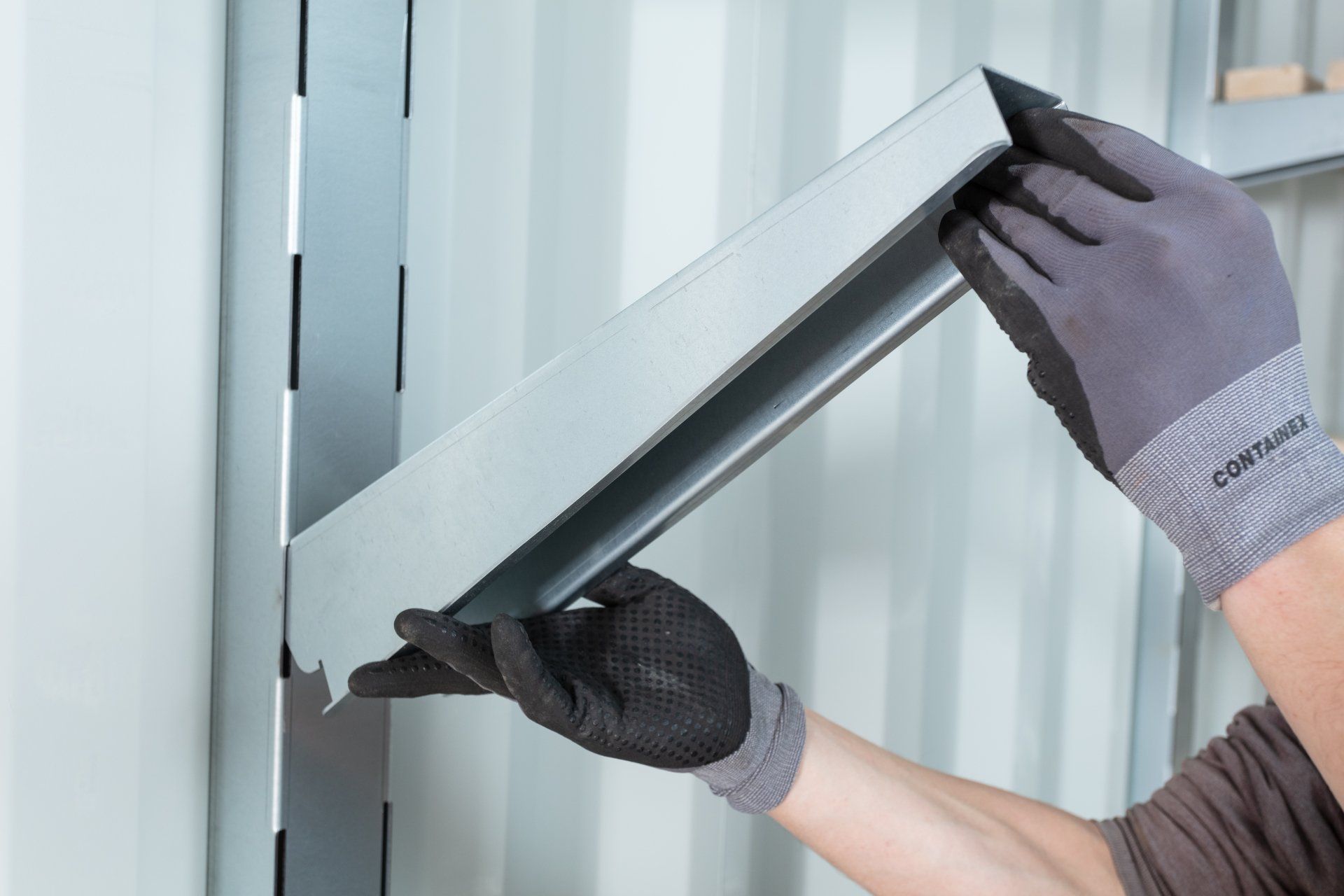

Bracket · 450 mm
Drops into a slot. No tools.
Rated 150 kg. 11 height positions on every Standard Duty upright.
Timber deck
Sits across two brackets, secured with the supplied screws from underneath.
Carries what the two brackets under it are rated for: 150 kg each at 450 mm.

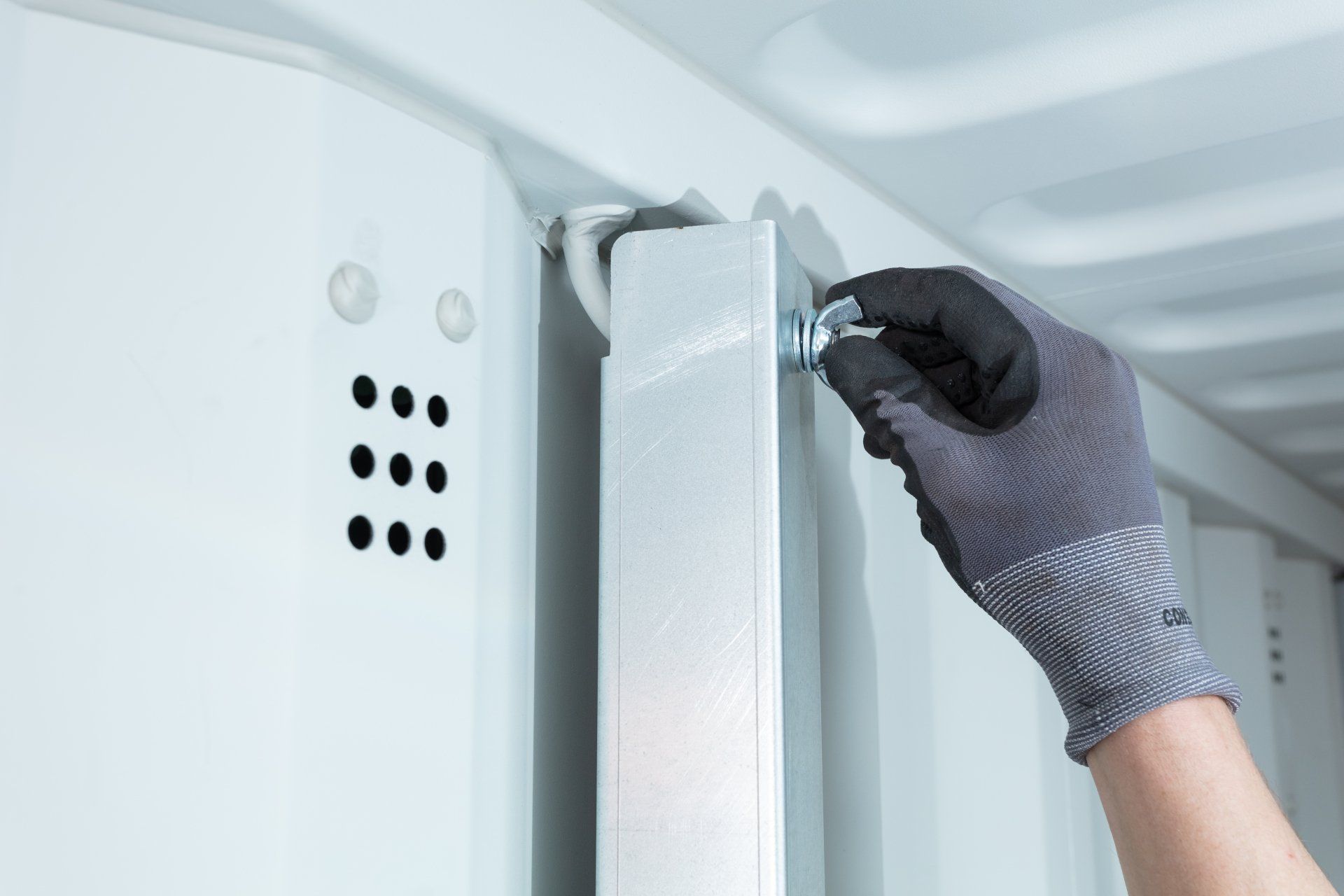

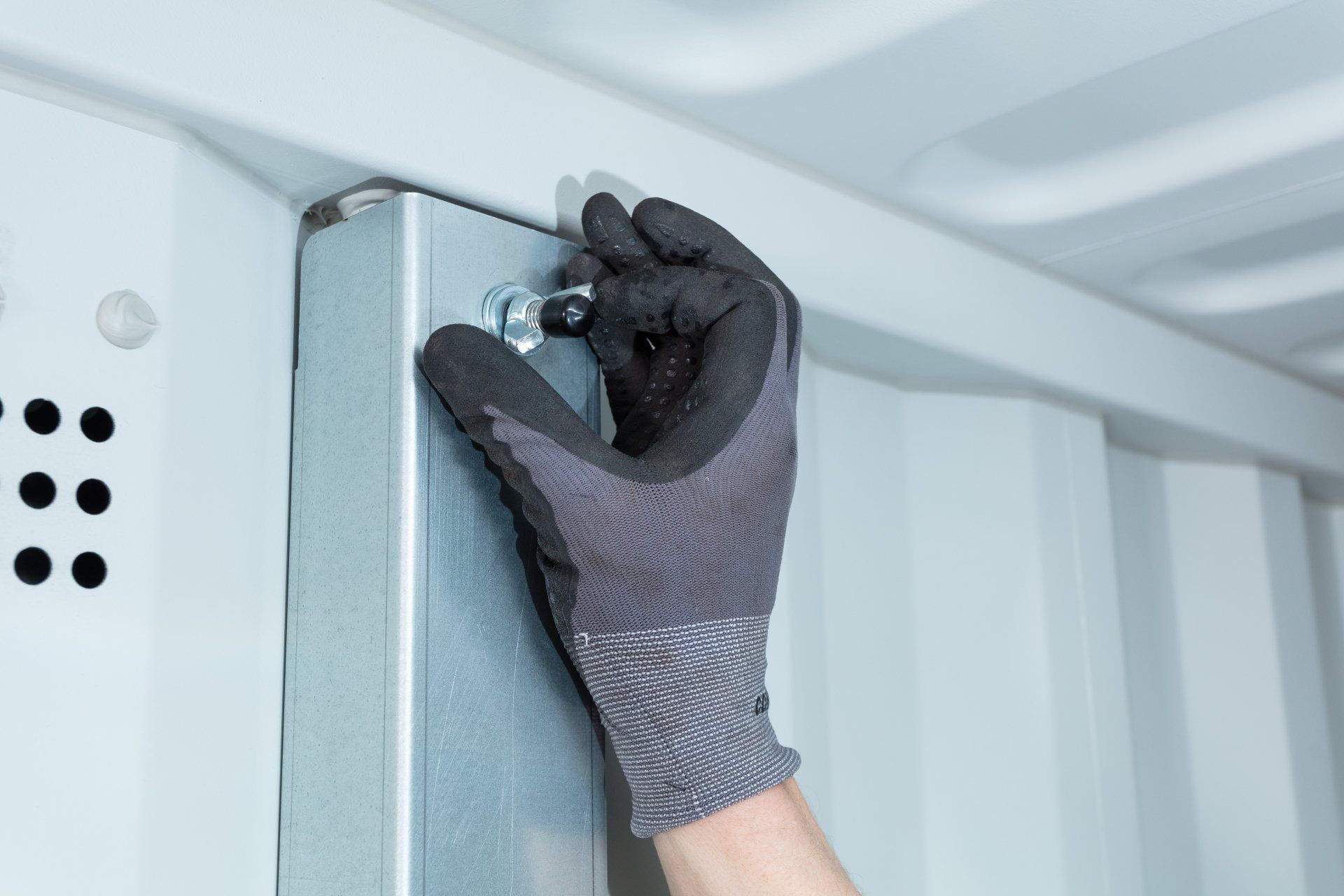

Hook bolt
Two per upright, top and bottom. Hooks round the ring, wing nut tightened by hand.
Two per upright, top and bottom, each round a lashing ring. Secured by hand with the wing nut provided: no tools needed.
Sectors
Who
uses it

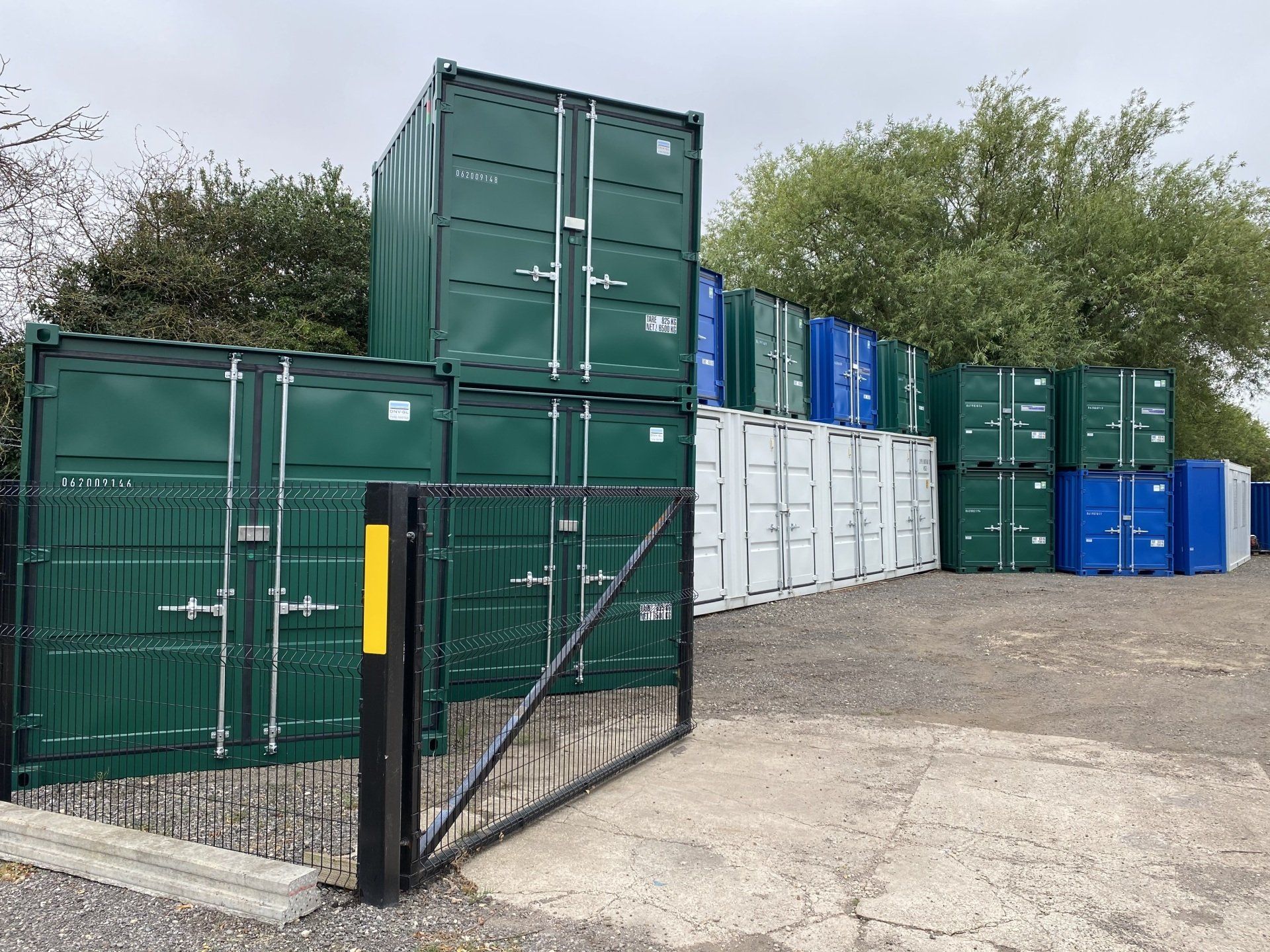

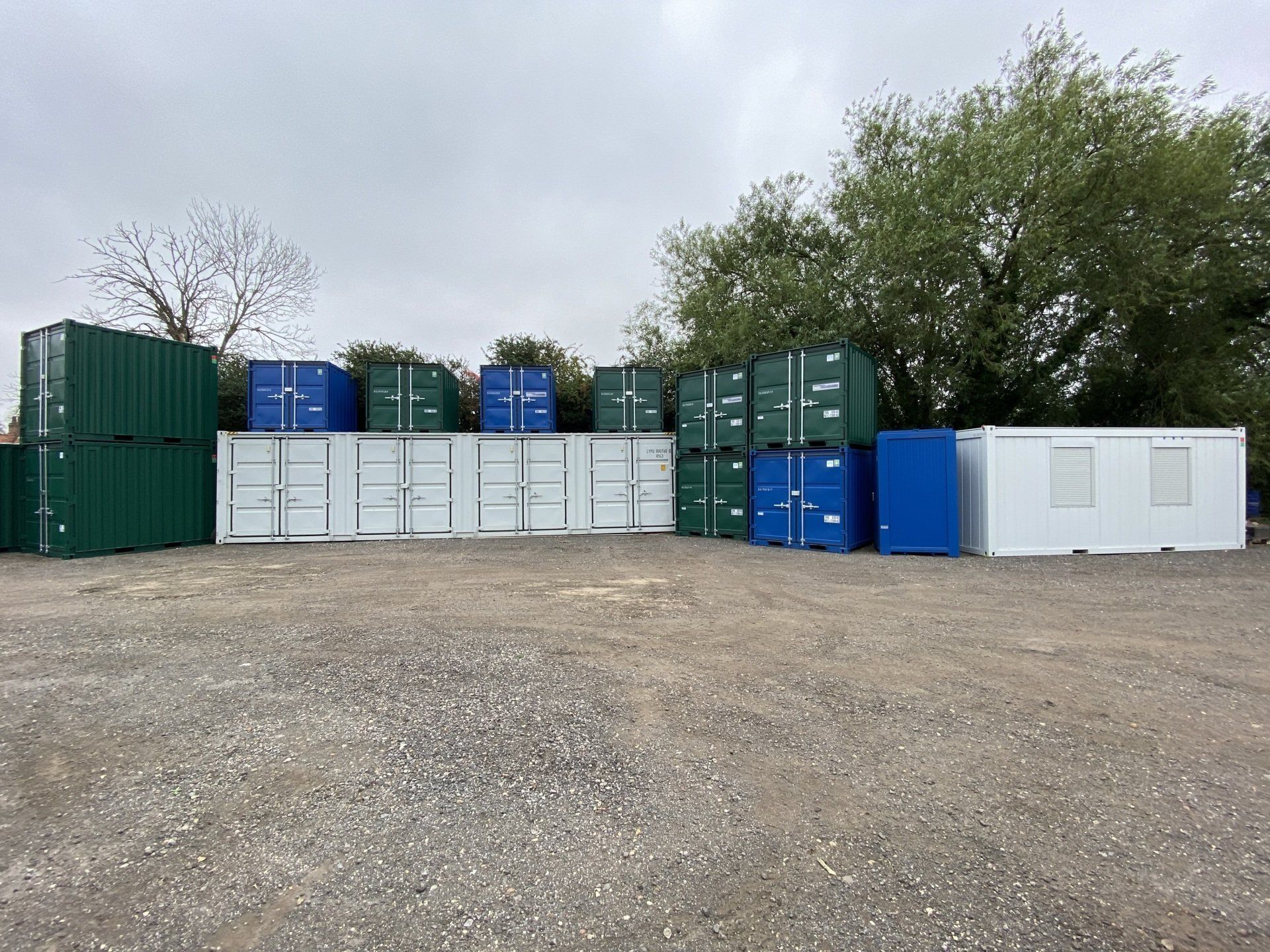

Self storage yards, marinas, farms, fire stations, building sites and oil fields, with the same parts carrying very different loads.
Fitted in minutes, gone without a trace.
Shelving your tenants can use on day one, and that leaves the box exactly as it was when they go.
- System
- Standard Duty
- Arms
- 450 mm
- Layout
- Both walls, four levels
- From
- £1,852.00
- Archive boxes
- Plastic crates
- Household boxes
- Garden tools
Long things on their own shelf.
Sails, masts and paddles slide straight in from the door end, with kit on decks above and below.
- System
- Standard Duty
- Arms
- 600 mm
- Layout
- Kit wall plus long-items wall
- From
- £1,361.50
- Folded sails
- Masts and booms
- Kayak paddles
- Lifejackets
A store that ships with the crew.
Heavy Duty racking for tools, spares and drilling kit, in a container you can lift and move.
- System
- Heavy Duty
- Arms
- 600 mm
- Layout
- One wall, three levels
- Price
- Made to order
- Tool cases
- Drill bits
- Valves and fittings
- Hydraulic hose
Overflow stores without a building.
Turn a container on the yard into a stores room for bins, parts and raw material.
- System
- Standard Duty
- Arms
- 600 mm
- Layout
- One wall, three levels
- From
- £857.75
- Parts bins
- Raw material
- Packaging
- Spares
Find it first time.
Field stores and medical supplies on shelves, in a container that travels and comes home again.
- System
- Standard Duty
- Arms
- 450 mm
- Layout
- Both walls, four levels
- From
- £1,852.00
- Medical supplies
- Ration boxes
- Water and filters
- Bedding
Kit stored, kit ready.
Equipment stores and training rigs with every item on its own shelf.
- System
- Standard Duty or Heavy Duty
- Arms
- 600 mm
- Layout
- One wall, three levels
- From
- £857.75
- Rolled hoses
- Helmets and PPE
- Boots
- Breathing apparatus cases
The site store that moves with the job.
Tools, fixings and parts off the floor and findable, in a container that goes to the next site.
- System
- Standard Duty
- Arms
- 600 mm
- Layout
- One wall, three levels
- From
- £857.75
- Power tools
- Fixings and fasteners
- PPE
- Machine parts
Can I install it myself?
Yes. The racking is designed for containers. The hook bolts tighten by hand and the decks take a screwdriver. A three-level bay takes about 25 minutes.
Can it be removed?
Yes. Undo the hook bolts and lift it out. Nothing is drilled, so the container is left as it was. Self storage operators rely on this.
Can the container be moved with the racking in?
Yes, as long as the decks are empty and every fixing is tight.
How much can the shelves carry?
It depends on the system and the bracket length. Standard Duty brackets carry 150 kg at 450 mm, 100 kg at 600 mm and 75 kg at 750 mm, and the upright 600 kg. Heavy Duty brackets carry 300 kg and the upright 900 kg. Spread loads evenly along each deck.
| Safe working load | Standard Duty | Heavy Duty |
|---|---|---|
| Per upright | 600 kg | 900 kg |
| Per 450 mm bracket | 150 kg | Not made |
| Per 600 mm bracket | 100 kg | 300 kg |
| Per 750 mm bracket | 75 kg | Not made |
Does it fit a high cube container?
Yes, with longer uprights. Choose high cube in the configurator and we'll quote it.
